Architectural Catalog
Systems & Profiles
Manufactured from primary 6063-T5 virgin alloy. Engineered for thermal performance, acoustic attenuation, and seamless architectural integration.
ELA-70 Heritage2.0 mm Gauge
ELA-55 Naturale1.8 mm Gauge
ELA-80 Panorama2.0 mm Gauge
ELA-90 Prestige2.2 mm Gauge
ELA-60 Noir1.8 mm Gauge
ELA-120 ThermoSlide2.0 mm Gauge
ELA-75 EuroTurn1.8 mm Gauge
ELA-Profiles Direct1.2 mm to 3.0 mm structural gauges
ELA-Pergola Bioclimatic2.5 mm to 3.0 mm heavy structural gauge
Aluminium Louvered Pergola
Motorized dual-layer adjustable louvers with integrated perimeter LED and internal drainage.
Glazing:Optional motorized windproof zip-screens or frameless glass
Finish:Qualicoat Class 1 Deep Matte Noir / Anodized Bronze
Mechanism:Motorized dual-pivot rotary louvers (0° to 120° rotation)
ELA-Carport Shield3.0 mm to 4.0 mm post and cantilever beam gauge
Aluminium Carport System
Heavy-duty cantilever vehicle shelter with high-impact UV-resistant architectural roofing.
Glazing:UV-blocking impact-resistant polycarbonate or insulated panel
Finish:Fluorocarbon Electrophoresis Champagne Gold / Matte Anthracite
Mechanism:Freestanding or wall-anchored architectural canopy
ELA-Canopy Arch2.0 mm to 2.5 mm structural cantilever profile

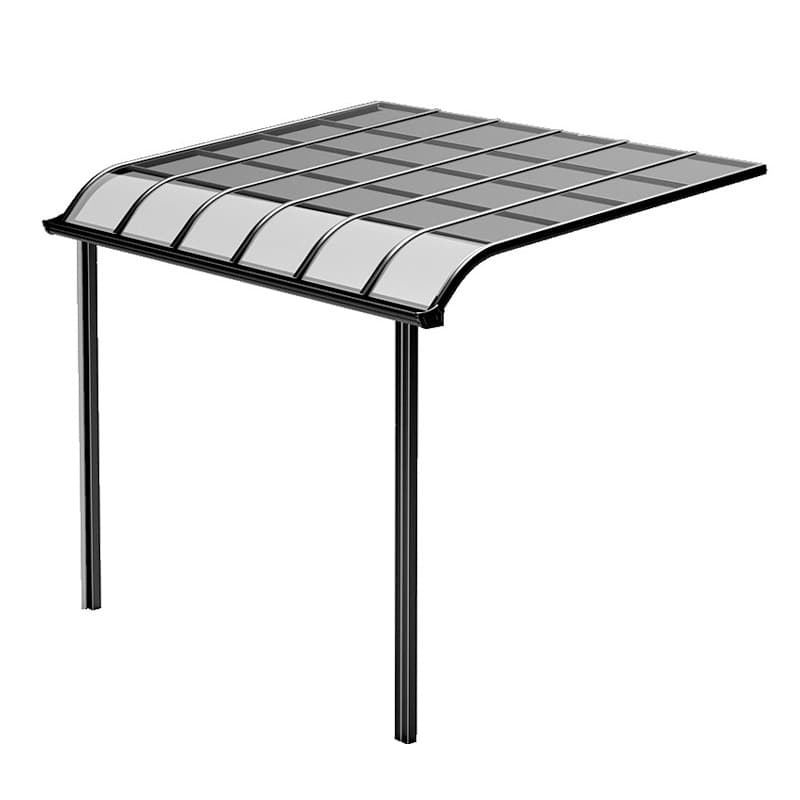

Aluminium Awning Canopy
Architectural terrace and entry canopy engineered for weather protection and sun shielding.
Glazing:8mm+8mm Laminated Safety Glass or High-Impact Polycarbonate
Finish:Powder Coated Anodic Anthracite / Fine Texture Black
Mechanism:Fixed slope cantilever with concealed stainless steel brackets
ELA-Sunroom Solarium2.5 mm to 3.5 mm structural roof rafters and column mullions
Architectural Sunroom
Thermal-break glass solarium combining panoramic views with climate-controlled luxury living.
Glazing:Double Glazed Low-E (6mm Low-E + 12A Argon + 6mm Toughened)
Finish:Multi-layer Fluorocarbon Coating / Custom Dual-Tone
Mechanism:Integrated multi-track sliding panels and folding walls
Engineering Matrix
Architectural System Specifications
Complete engineering cross-reference for architects, structural facade engineers, and project quantity surveyors.
| Series & Model | Category | Profile Gauge | Alloy Grade | Glazing Schedule | Mechanism | Inquiry |
|---|---|---|---|---|---|---|
Arched French Casement Door ELA-70 Heritage | doors | 2.0 mm Gauge | 6063-T5 Virgin Aluminium | 8mm Tempered Water-Ripple Glass | Concealed 3D Adjustable Hinges | Estimate |

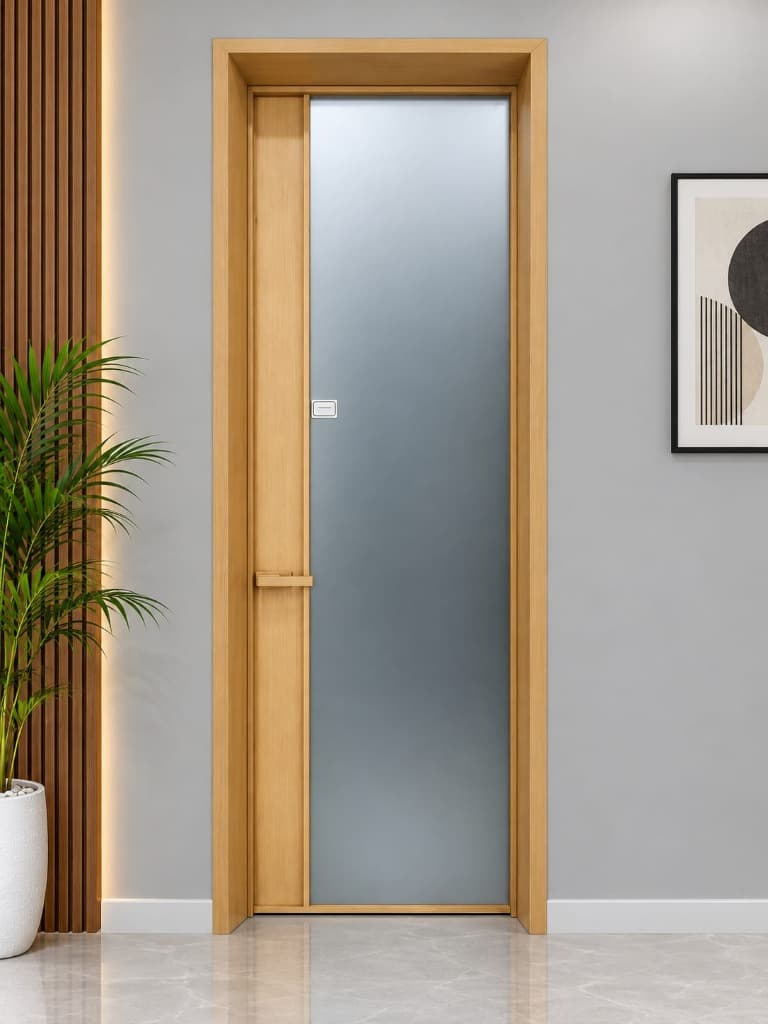

Minimalist Woodgrain Swing Door ELA-55 Naturale | doors | 1.8 mm Gauge | 6063-T5 Aluminium Alloy | Double Glazed Frosted (5mm + 9A + 5mm) | Concealed Soft-Close Pivot | Estimate |
Ultra-Slim Bi-Fold Accordion Door ELA-80 Panorama | doors | 2.0 mm Gauge | 6063-T5 High-Tensile Alloy | 8mm Tempered Reeded Fluted Glass | Stainless Steel Precision Roller Bearings | Estimate |

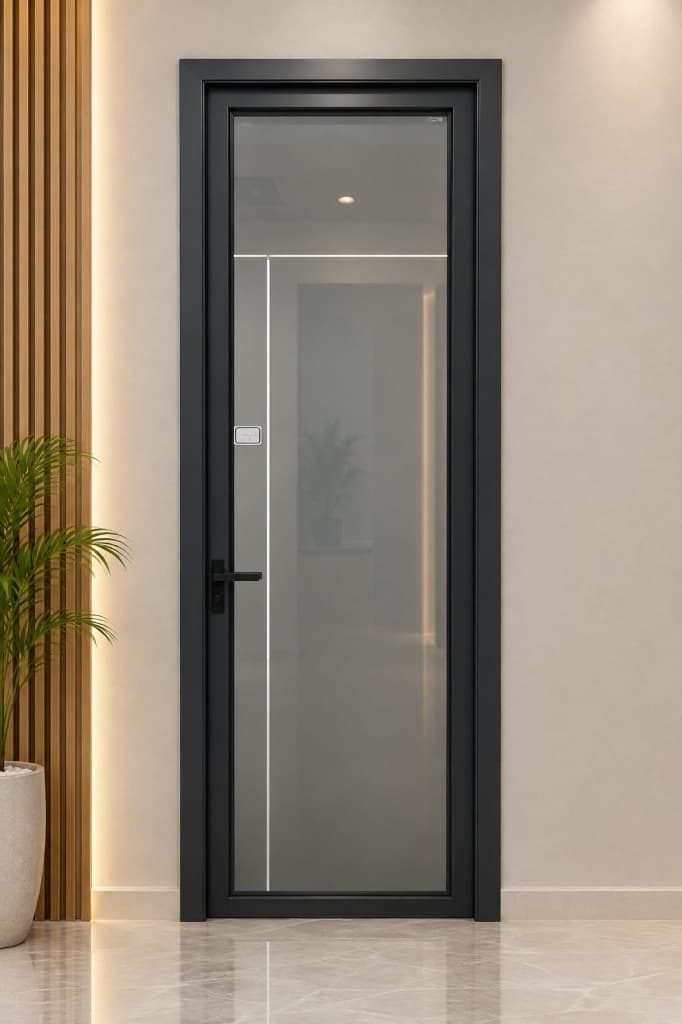

Lumina Integrated LED Door ELA-90 Prestige | doors | 2.2 mm Gauge | 6063-T5 Architectural Billet | 10mm Toughened Tinted Glass | Hydraulic Self-Closing Heavy Pivot | Estimate |

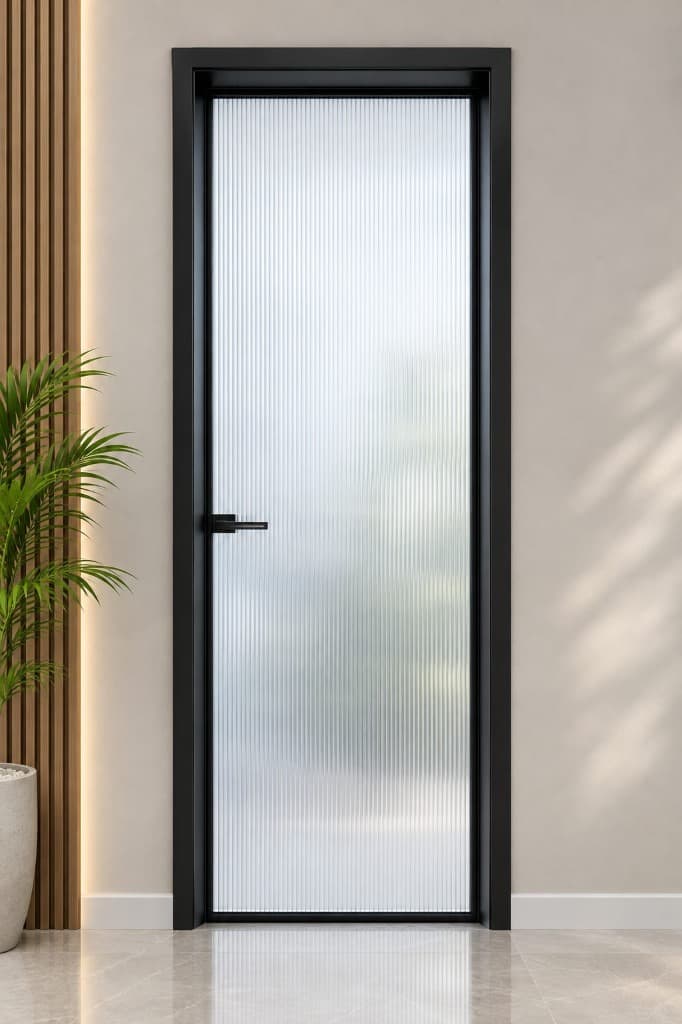

Minimalist Matte Black Reeded Door ELA-60 Noir | doors | 1.8 mm Gauge | 6063-T5 Extruded Aluminium | 8mm Clarity Tempered Fluted | Magnetic Concealed Latch | Estimate |
Thermal-Break Sliding Window ELA-120 ThermoSlide | windows | 2.0 mm Gauge | 6063-T5 with Polyamide PA66 Thermal Barrier | Double Glazed Low-E (6mm + 12A Argon + 6mm) | Stainless Steel Lift & Slide Rollers | Estimate |

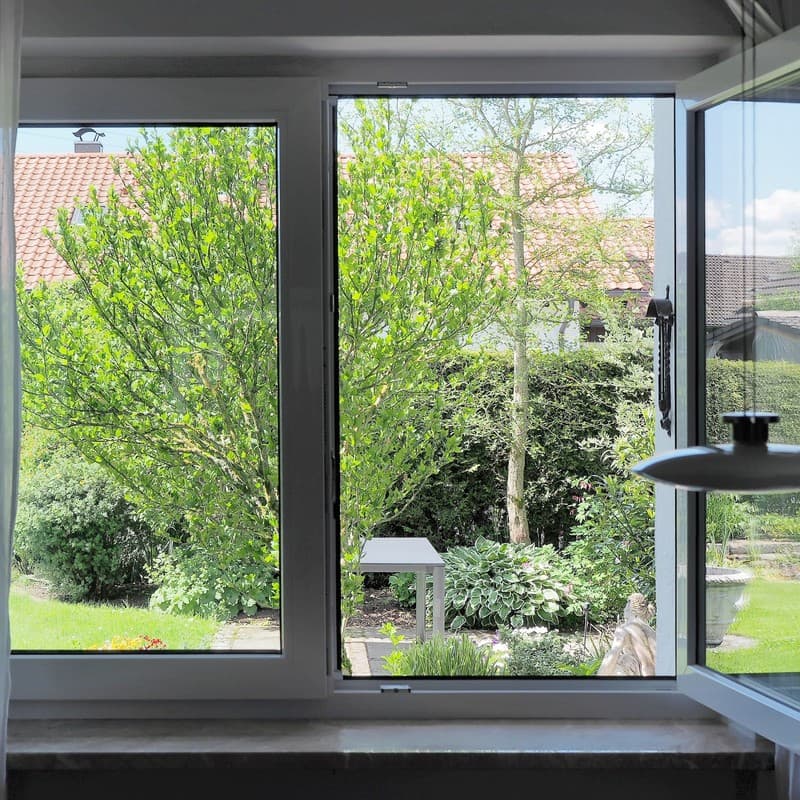

German Tilt & Turn Window ELA-75 EuroTurn | windows | 1.8 mm Gauge | 6063-T5 Virgin Billet | Laminated Double Glazed (5mm + 0.76PVB + 5mm) | German Concealed Multi-Point Hardware | Estimate |

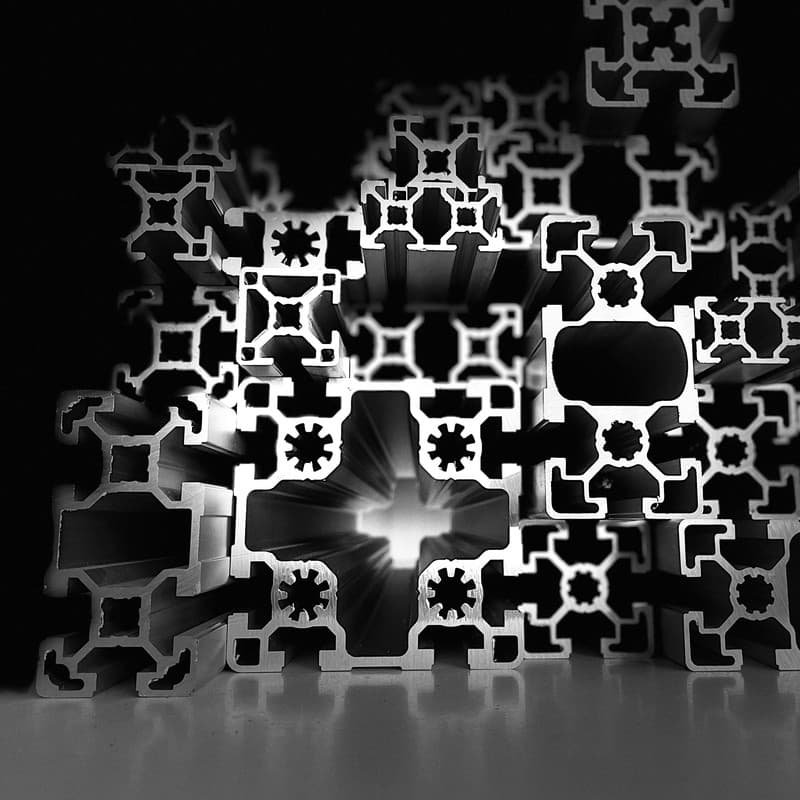

6063-T5 Architectural Extrusions ELA-Profiles Direct | profiles | 1.2 mm to 3.0 mm structural gauges | Virgin 6063-T5 Aluminium | Glazing pockets 5mm to 28mm | Precision corner cleat compatibility | Estimate |
Aluminium Louvered Pergola ELA-Pergola Bioclimatic | outdoor | 2.5 mm to 3.0 mm heavy structural gauge | 6063-T5 Architectural Billet | Optional motorized windproof zip-screens or frameless glass | Motorized dual-pivot rotary louvers (0° to 120° rotation) | Estimate |
Aluminium Carport System ELA-Carport Shield | outdoor | 3.0 mm to 4.0 mm post and cantilever beam gauge | 6063-T5 High-Tensile Structural Alloy | UV-blocking impact-resistant polycarbonate or insulated panel | Freestanding or wall-anchored architectural canopy | Estimate |
Aluminium Awning Canopy ELA-Canopy Arch | outdoor | 2.0 mm to 2.5 mm structural cantilever profile | 6063-T5 Virgin Structural Alloy | 8mm+8mm Laminated Safety Glass or High-Impact Polycarbonate | Fixed slope cantilever with concealed stainless steel brackets | Estimate |
Architectural Sunroom ELA-Sunroom Solarium | outdoor | 2.5 mm to 3.5 mm structural roof rafters and column mullions | 6063-T5 Heavy-Gauge Thermal-Break Aluminium | Double Glazed Low-E (6mm Low-E + 12A Argon + 6mm Toughened) | Integrated multi-track sliding panels and folding walls | Estimate |
Direct Engineering Consultation
Have Architectural CAD Schedules or Custom Openings?
Our engineering desk accepts CAD drawings (.dwg, .dxf) and architectural elevation PDFs. We prepare structural wind-load verifications, cutting schedules, and certified quotations within 24 hours.
